Home / Insulated Metal Panels / DSR-M: Quick-Change Panel System
DSR-M: Quick-Change Panel System
Our DSR-M panels are unique as they feature built-in aluminum extrusions on all four sides, allowing any of the panels in a wall system to be flexibly removed or replaced if needed. DSR-M panels are primarily used in exterior wall applications for commercial and public buildings as well as for industrial manufacturing plants. This composite panel consists of two layers of metal permanently hot-pressed onto a fire-resistant mineral wool core. Panels can be installed horizontally or vertically and can be customized to meet different length, width, thickness, and joint requirements.

Technical advantages:

•Our innovative "M hook" joint features an interlocking, built-in, high-strength extrusion around the panel, allowing for seamless integration with windows and doors; •The unique design allows for the ability to remove/replace any panel in the wall system as needed; •Concealed fastening clips and screws create a smooth appearance; •The non-perforated panel surface adherence method ensures the wall system's free thermal displacement; •Continuous mineral wool at panel joints provides optimal insulation and fireproofing; •The return face on panel ends creates a 100% dry seal without silicone; •Because our panels are produced using a hot-pressing technique, our panel surfaces have a high degree of flatness without the waviness and track indentation found on panels fabricated on continuous manufacturing lines; •Our adhesive application and static hot-pressing processes ensure consistent, strong bonding.
For customization options and specifications, please click on the rendering below:
Horizontal Profile Vertical Profile

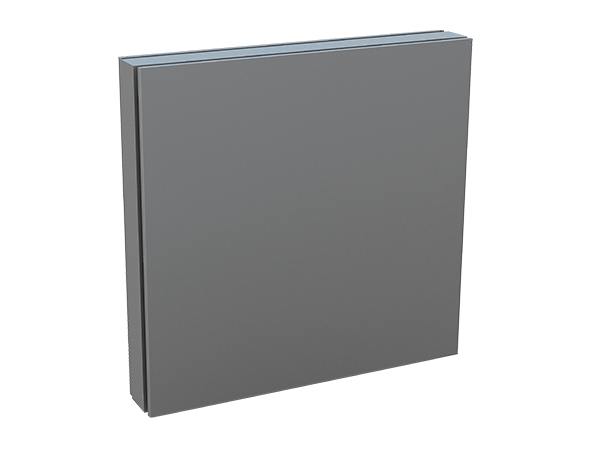

DSR-M
DSR-M Customization Options

•Bespoke Dimensions: DSR-M panels can be customized in different lengths, widths, and thicknesses as required for a project;

•Coatings: Our coating options include standard and specialty formulas for superior weather resistance, corrosion resistance, self-cleaning, anti-static, and more;

•Colors: Beyond our vast standard color palette (including the RAL® and CBCC® color systems), we offer micas, metallics, and color-shifting options in a range of gloss levels to boost your projects from ordinary to extraordinary. For more information about our Colors and Coatings, please click here.

DSR-M Specifications
Panel Width Panel Thickness
300mm – 1400mm* 50mm – 200mm
Reveal Width 25mm
Surface Finish Smooth, Embossed, Striated
Outer Metal Layer Thickness 0.6 – 1.0mm
Inner Metal Layer Thickness 0.5 – 1.0mm
Mineral Wool Weight Capacity Standard 140KG/m3
Substrates Stainless Steel, Titanium Zinc Plate, Color-Coated Steel Plate, Aluminum, and more.

*Other non-standard panel widths are available. For details, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

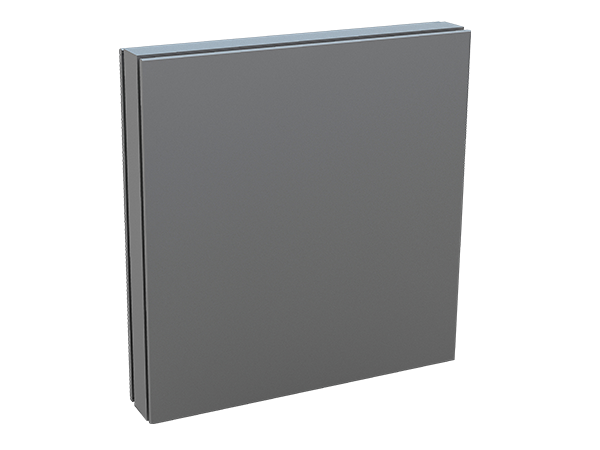

DSR-M
DSR-M Customization Options

•Bespoke Dimensions: DSR-M panels can be customized in different lengths, widths, and thicknesses as required for a project;

•Coatings: Our coating options include standard and specialty formulas for superior weather resistance, corrosion resistance, self-cleaning, anti-static, and more;

•Colors: Beyond our vast standard color palette (including the RAL® and CBCC® color systems), we offer micas, metallics, and color-shifting options in a range of gloss levels to boost your projects from ordinary to extraordinary. For more information about our Colors and Coatings, please click here.

DSR-M Specifications
Panel Width Panel Thickness
300mm – 1400mm* 50mm – 200mm
Reveal Width 25mm
Surface Finish Smooth, Embossed, Striated
Outer Metal Layer Thickness 0.6 – 1.0mm
Inner Metal Layer Thickness 0.5 – 1.0mm
Mineral Wool Weight Capacity Standard 140KG/m3
Substrates Stainless Steel, Titanium Zinc Plate, Color-Coated Steel Plate, Aluminum, and more.

*Other non-standard panel widths are available. For details, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

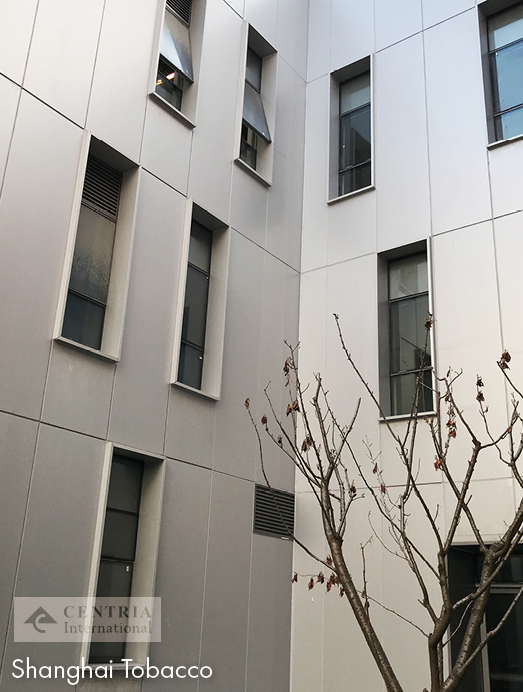

For images of some of our DSR-M projects, please click here. You can also read more about our award-winning aesthetics, superior service, and our passion for top performance.
