Home / Insulated Metal Panels / DSR-HG: Fire-Resistant Interior Partition Wall System
DSR-HG: Fire-Resistant Interior Partition Wall System

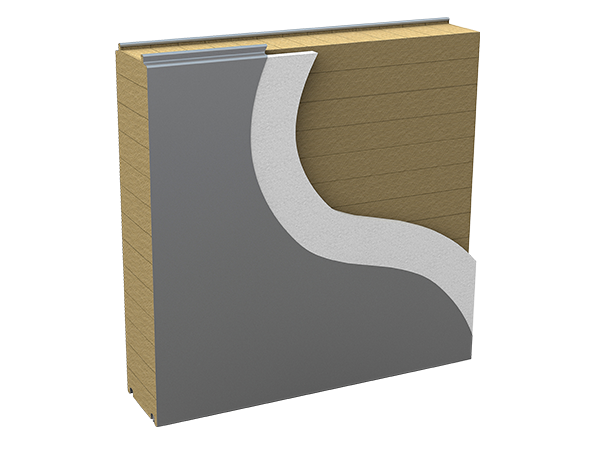

Our DSR-HG panels deliver outstanding performance with extreme fire resistance and soundproofing advantages. They are an ideal choice for interior partition walls or ceilings for industrial factories, commercial and public buildings, and athletic facilities. These composite wall system panels consist of two layers of metal permanently hot-pressed onto a fire-resistant mineral wool and gypsum core. The panels feature a double-tongue-and-groove side joint, allowing for horizontal or vertical installation, creating flexibility for designers.

Technical advantages:

•Our DSR-HG panels are an excellent choice when fire resistance and acoustics are a priority; •Our innovative "H hook" joint produces high-strength panels that make purlin-free, extended-length wall systems possible, reducing steel usage and creating a clean finish;

•Continuous mineral wool at panel joints provides optimal insulation and the DSR-H design allows the panels to achieve qualified fire ratings for walls and roofs;

•Panels can be installed horizontally or vertically;

•Because our panels are produced using a hot-pressing technique, our panel surfaces have a high degree of flatness without the waviness and track indentation found on panels fabricated on continuous manufacturing lines; •Our adhesive application and static hot-pressing processes ensure consistent, strong bonding.
For customization options and specifications, please click on the rendering below:
Horizontal Profile Vertical Profile
DSR-HG
DSR-HG Customization Options

•Bespoke Dimensions: DSR-HG panels can be customized in different lengths, widths, thicknesses, and joints as required for a project;

•Coatings: Our coating options include standard and specialty formulas for scratch-resistance, anti-static, and other finish requirements;

•Colors: Beyond our vast standard color palette (including the RAL® and CBCC® color systems), we offer micas, metallics, and color-shifting options in a range of gloss levels to boost your projects from ordinary to extraordinary. For more information about our Colors and Coatings, please click here.

DSR-HG Specifications
Panel Width 300mm – 1200mm*
Panel Thickness 50mm – 200mm
Reveal Width 2mm
Surface Finish Smooth, Embossed, Striated
Outer Metal Layer Thickness 0.6 – 1.0mm
Inner Metal Layer Thickness 0.5 – 1.0mm
Mineral Wool Weight Capacity Standard 140KG/m3
Substrates Stainless Steel, Titanium Zinc Plate, Color-Coated Steel Plate, Aluminum, and more.

*Other non-standard panel widths are available. For details, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

DSR-HG
DSR-HG Customization Options

•Bespoke Dimensions: DSR-HG panels can be customized in different lengths, widths, thicknesses, and joints as required for a project;

•Coatings: Our coating options include standard and specialty formulas for scratch-resistance, anti-static, and other finish requirements;

•Colors: Beyond our vast standard color palette (including the RAL® and CBCC® color systems), we offer micas, metallics, and color-shifting options in a range of gloss levels to boost your projects from ordinary to extraordinary. For more information about our Colors and Coatings, please click here.

DSR-HG Specifications
Panel Width 300mm – 1200mm*
Panel Thickness 50mm – 200mm
Reveal Width 2mm
Surface Finish Smooth, Embossed, Striated
Outer Metal Layer Thickness 0.6 – 1.0mm
Inner Metal Layer Thickness 0.5 – 1.0mm
Mineral Wool Weight Capacity Standard 140KG/m3
Substrates Stainless Steel, Titanium Zinc Plate, Color-Coated Steel Plate, Aluminum, and more.

*Other non-standard panel widths are available. For details, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

For images of some of our Insulated Metal Panel projects, please click here. You can also read more about our award-winning aesthetics, superior service, and our passion for top performance.
