Home / Single-Skin Metal Panels / Traditional Series (HR5): Symmetrical Rib Profile
Traditional Series (HR5): Symmetrical Rib Profile
Our versatile Industrial Series HR5-36 exposed fastener panels provide practically limitless design possibilities as they can be used for exterior or interior walls, roofs, and soffits. Their flexibility, ease of installation, and excellent negative wind load properties make these panels an ideal option for both new construction and refurbishment projects. The sturdy panels have 914mm coverage and uniformly spaced ribs at 183mm. HR5-36 can be used as an exterior panel in combination with an interior liner panel and subgirt to form a field-insulated wall or roof system. Featuring both horizontal and vertical profiles and a vast range of colors and finishes from which to choose, our HR5-36 panels add extraordinary visual appeal and top performance for any project.

Technical advantages:

•Extremely versatile panels can be used as exterior or interior walls, roofs, and soffits and may be used with an insulated liner panel for thermal protection; •Wall systems can be installed horizontally, vertically, or diagonally; •Our proprietary seamless corner design and manufacturing technology provide a flawless finish without unsightly fasteners. Additionally, the corners are made of the same material as the adjacent panels for a perfect match; •Our innovative manufacturing process allows HR5-36 to be fabricated as perforated screen walls giving projects an airy aesthetic and providing a distinctive way to blend industrial and other applications with their surroundings. Patterns can be staggered or reversed, with an open/free area percentage ranging from 10% – 40% and a diameter from 3.2mm – 9.5mm; •Super section strength with a maximum thickness of up to 1.2mm; •Tremendous negative wind load properties for large span requirements; •All-weather installation capability minimizes delays and permits fast-track scheduling.
For customization options and specifications, please click on the rendering below:
Horizontal Profile Vertical Profile

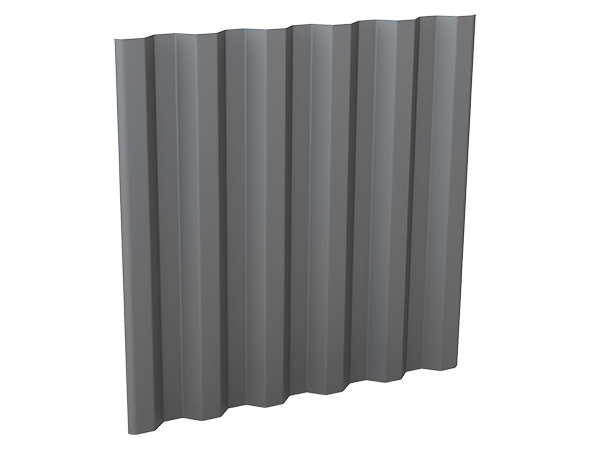

HR5-36
HR5-36 Customization Options
•When used as a wall panel, HR5-36 laps in the low cell, and as a roof panel, it is inverted so that the side lap occurs in the high cell;

•May be used with an insulated liner panel to meet many levels of thermal protection;

•Panels are available in embossed or smooth finishes;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

HR5-36 Specifications
Panel Width 914mm
Panel Depth 38mm
Panel Thickness 0.6 – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Aluminum or Stainless Steel

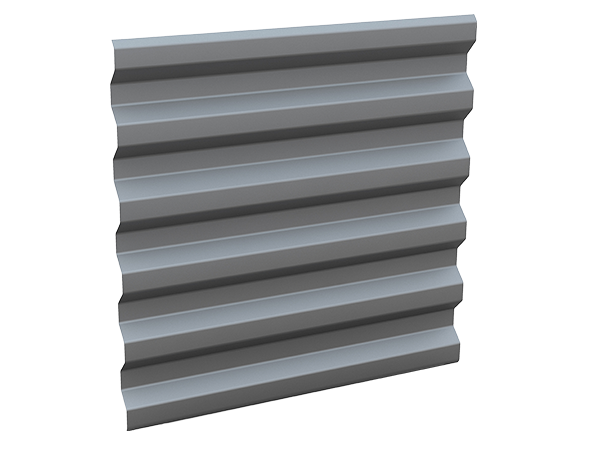

HR5-36
HR5-36 Customization Options
•When used as a wall panel, HR5-36 laps in the low cell, and as a roof panel, it is inverted so that the side lap occurs in the high cell;

•May be used with an insulated liner panel to meet many levels of thermal protection;

•Panels are available in embossed or smooth finishes;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

HR5-36 Specifications
Panel Width 914mm
Panel Depth 38mm
Panel Thickness 0.6 – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Aluminum or Stainless Steel

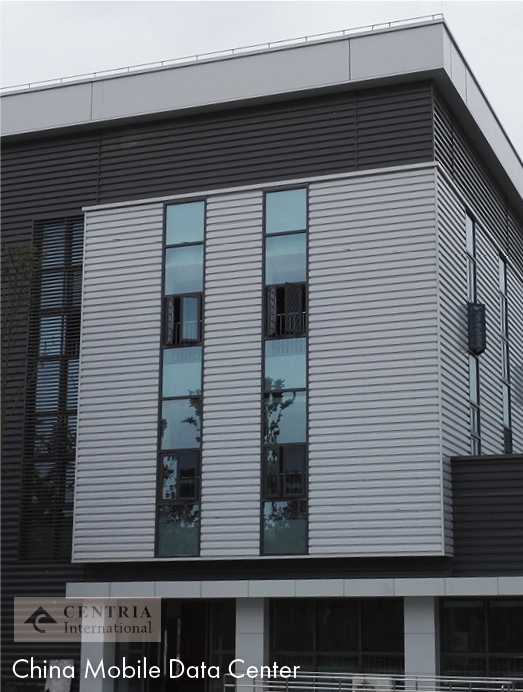

For images of some of our Industrial Series (HR5) projects, please click here. You can also read more about our award-winning aesthetics, superior service, and our passion for top performance.
