Home / Single-Skin Metal Panels / Modern Series (IW): Ultra-Flat Profiles
Modern Series (IW): Ultra-Flat Profiles
Our IW-Series panels make limitless, unique visual effects possible. The panels feature concealed fasteners for a clean, unbroken appearance and are available in both smooth and embossed finishes. The panels all feature a common-lock joint design making them interchangeable on a project, and the lock also functions as a weathering joint designed to resist the elements. All IW wall panels may be used as a single skin or in combination with an interior liner panel, insulated core, and subgirt to form a field-insulated wall or soffit system and are an excellent option for both new construction and retrofit projects. The panels can be installed year-round, reducing installation time and leading to fast-track scheduling and a potential reduction in construction costs. With 13 different IW-Series profiles from which to choose, the sky is the limit for designers.

Technical advantages:

•Panels are available with smooth or embossed finishes and in flush, ribbed, striated, and stepped profiles; •Concealed fasteners create an immaculate appearance; •All panels are interchangeable due to the common-lock joint design, which allows for interesting visual effects; •May be used with an insulated liner panel to meet many levels of thermal protection; •Panels can be installed vertically or horizontally; •The panels can be installed all year long, helping to reduce project costs; •Best suited for Industrial applications.
For customization options and specifications, please click on the renderings below:
Horizontal Profile Vertical Profile

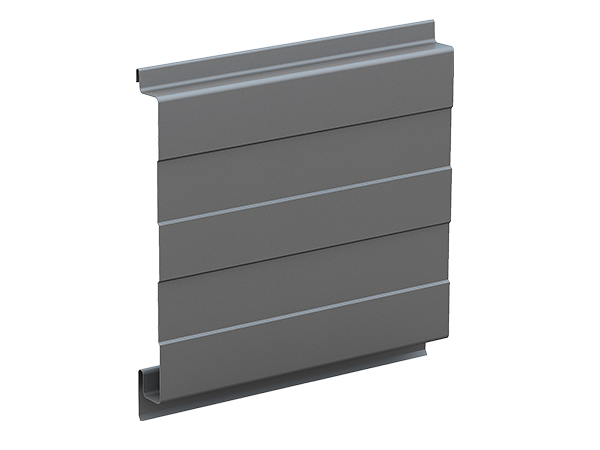

IW-10
IW-10 Product Description and Customization
•IW-10 boasts a trio of ribs to add visual interest to projects;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-10 Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
IW-10
IW-10 Product Description and Customization
•IW-10 boasts a trio of ribs to add visual interest to projects;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-10 Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile
IW-10A
IW-10A Product Description and Customization

•IW-10A has a sleek panel face for a sophisticated project appearance;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-10A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
IW-10A
IW-10A Product Description and Customization

•IW-10A has a sleek panel face for a sophisticated project appearance;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-10A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile

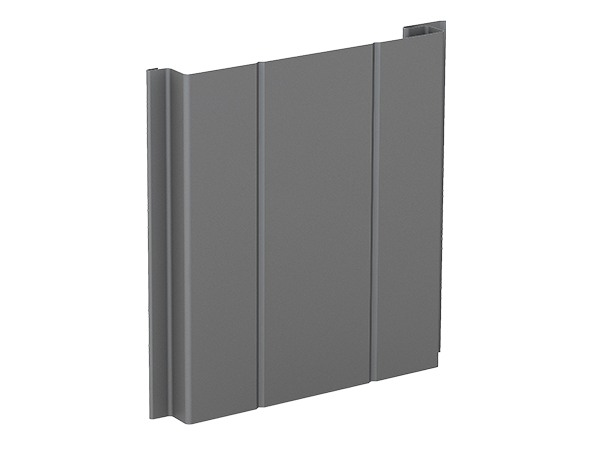

IW-11A
IW-11A Product Description and Customization

•The duo of lines intersecting the IW-11A panel adds flair to any project;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-11A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
IW-11A
IW-11A Product Description and Customization

•The duo of lines intersecting the IW-11A panel adds flair to any project;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-11A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile
IW-12A
IW-12A Product Description and Customization
•The IW-12A grabs attention with the ribbing lines in the center of the panel;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-12A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
IW-12A
IW-12A Product Description and Customization
•The IW-12A grabs attention with the ribbing lines in the center of the panel;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-12A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile
IW-13A
IW-13A Product Description and Customization
•A fully ribbed panel, the IW-13A adds visual and tactile interest to projects;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-13A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
IW-13A
IW-13A Product Description and Customization
•A fully ribbed panel, the IW-13A adds visual and tactile interest to projects;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-13A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile

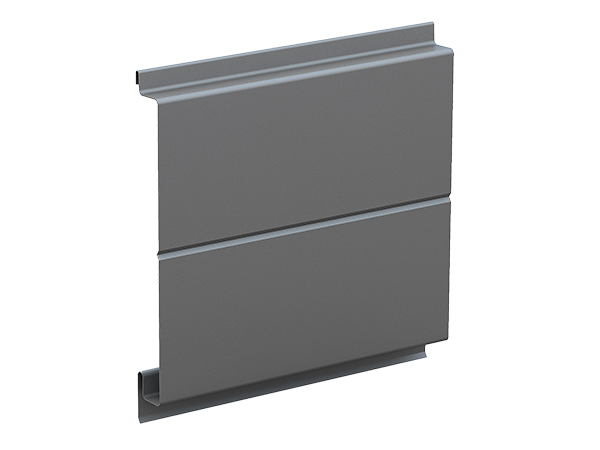

IW-14A
IW-14A Product Description and Customization
•The simplicity of IW-14A with the single line intersecting the middle of the panel creates clean lines on a building façade or interior;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-14A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
IW-14A
IW-14A Product Description and Customization
•The simplicity of IW-14A with the single line intersecting the middle of the panel creates clean lines on a building façade or interior;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-14A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile

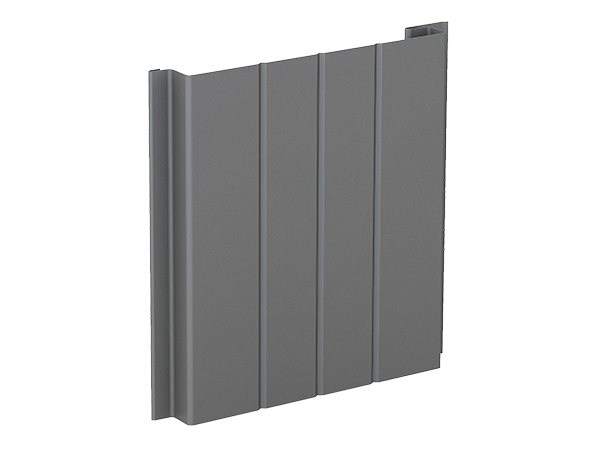

IW-15A
IW-15A Product Description and Customization
•The IW-15A offers eye-catching horizontal or vertical lines on a project's exterior or interior;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-15A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
IW-15A
IW-15A Product Description and Customization
•The IW-15A offers eye-catching horizontal or vertical lines on a project's exterior or interior;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-15A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile

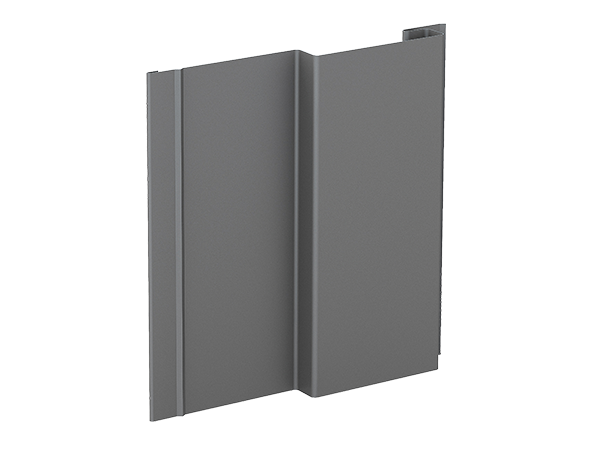

IW-20A
IW-20A Product Description and Customization
•The stepped profile of the IW-20A creates a deep ribbed shadow pattern on a finished wall surface;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-20A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
IW-20A
IW-20A Product Description and Customization
•The stepped profile of the IW-20A creates a deep ribbed shadow pattern on a finished wall surface;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-20A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile

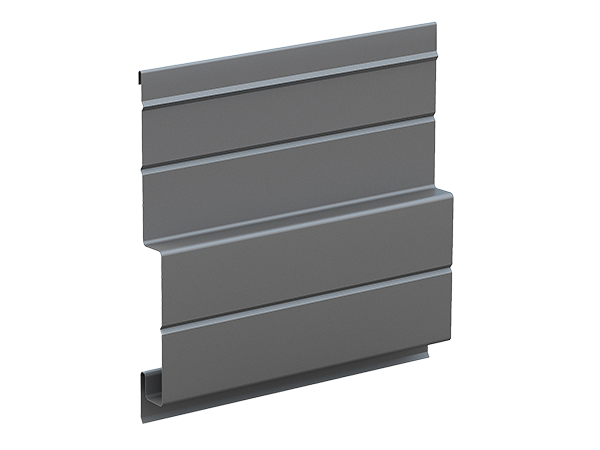

IW-21A
IW-21A Product Description and Customization
•The stretch ribs profile of the IW-21A adds a subtle highlight on a finished wall surface;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-21A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
IW-21A
IW-21A Product Description and Customization
•The stretch ribs profile of the IW-21A adds a subtle highlight on a finished wall surface;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-21A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile

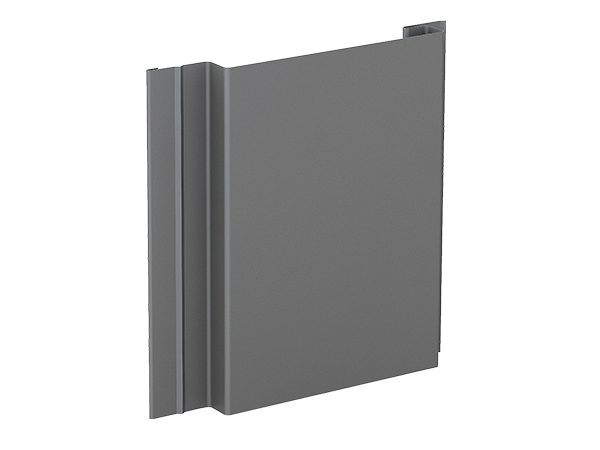

IW-30A
IW-30A Product Description and Customization
•The surface profile of the IW-30A panel alternates a 254mm wide flat plane with a 51mm wide recessed rib, creating an overall wall pattern of wide-set, narrow flutes on a flush appearing surface;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-30A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
IW-30A
IW-30A Product Description and Customization
•The surface profile of the IW-30A panel alternates a 254mm wide flat plane with a 51mm wide recessed rib, creating an overall wall pattern of wide-set, narrow flutes on a flush appearing surface;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-30A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile

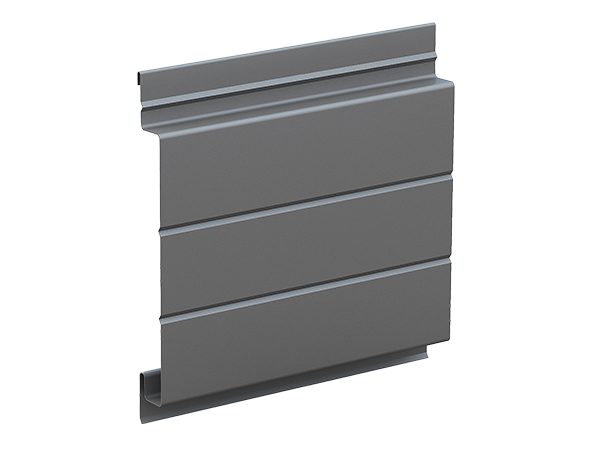

IW-31A
IW-31A Product Description and Customization
•The surface profile of the IW-31A panel creates an overall wall pattern of wide-set, narrow flutes on a flush appearing surface and has additional highlights created by its subtle stretched ribs;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-31A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
IW-31A
IW-31A Product Description and Customization
•The surface profile of the IW-31A panel creates an overall wall pattern of wide-set, narrow flutes on a flush appearing surface and has additional highlights created by its subtle stretched ribs;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-31A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile

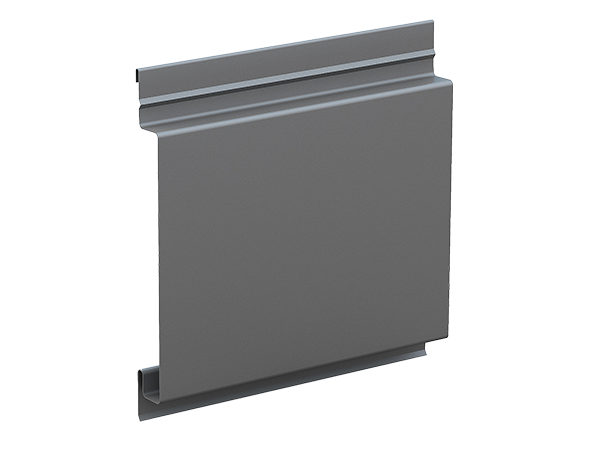

IW-40A
IW-40A Product Description and Customization
•The IW-40A is a 305mm wide concealed fastener panel with a 280mm flat and 25mm recess. A box-shaped veneer can be formed by folding the edge of the panel;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-40A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
IW-40A
IW-40A Product Description and Customization
•The IW-40A is a 305mm wide concealed fastener panel with a 280mm flat and 25mm recess. A box-shaped veneer can be formed by folding the edge of the panel;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-40A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile

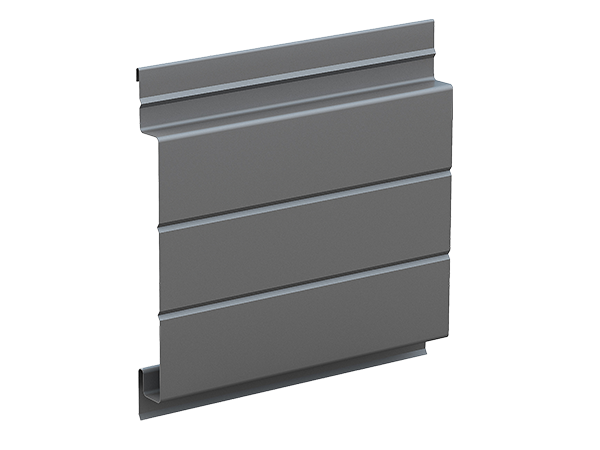

IW-41A
IW-41A Product Description and Customization
•The IW-41A is a 305mm wide concealed fastener panel with a 280mm flat with dual stretch beads and a 25mm recess. A box-shaped veneer can be formed by folding the edge of the panel;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-41A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
IW-41A
IW-41A Product Description and Customization
•The IW-41A is a 305mm wide concealed fastener panel with a 280mm flat with dual stretch beads and a 25mm recess. A box-shaped veneer can be formed by folding the edge of the panel;

•May be used with insulation and a liner panel to meet many levels of thermal protection;

•For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

IW-41A Specifications
Panel Width 305mm
Panel Depth 38mm
Base Thickness 0.76m – 1.2mm
Panel Length Max. 9.14m
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
For images of some of our Modern Series (IW) projects, please click here. You can also read more about our award-winning aesthetics, superior service, and our passion for top performance.
