SRS-65: Spherical Rib Architectural Series
Ideal for structurally complex roof configurations, our SRS-65 panels are engineered for the design flexibility architects require and support innovative roof creations. In addition to straight panels, SRS-65 features curved, tapered, and barrel-shaped options – with both convex and concave radii – that make fantastically shaped roofs possible. SRS-65 panels utilize unique, slidable clips that allow for slight movement between the panel and clip base eliminating panel abrasion, unlike traditional, fixed clips that result in this wear-and-tear. Additionally, the SRS-65 clip design provides a stronger grip force and higher wind uplift-resistance than traditional clip designs. For roofs that need to perform at the highest level and make a remarkable impression, SRS-65 is an excellent solution.

Technical advantages:

The SRS-65 features a 65mm rib height and sleek profile that ensures watertightness and maximum drainage performance, and prevents ponding and overflowing. The machine-sealed ribs strengthen the overall panel structure and create an impenetrable weather barrier against rain, wind, snow, and ice; The technical design features two concealed, slidable clips that eliminate thermal displacement due to expansion and contraction and provide high wind-resistance performance. The clips are available in a variety of configurations that work with any substrate, and they eliminate penetrating fasteners at structural supports and side laps; The design features a metal plate suspended 12mm from the top of the purlin. This allows for optimal insulation and for air to circulate freely between the metal plate and the thermal insulation layer preventing moisture condensation or corrosion on the inside of the plate; The panels also feature a corrosion-resistant, long-lasting aluminum substrate for moisture resistance; The independent seaming structure makes removal and replacement of a single panel possible after installation.
For customization options and specifications, please click on the rendering below:

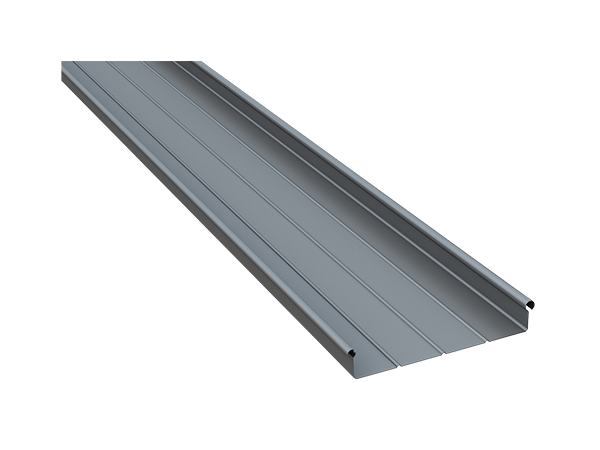

SRS-65
SRS-65 Customization Options

Curved SRS-65 panels are available in continuous Convex and Concave options;

Tapered and barrel-shaped SRS-65 panels (both Convex and Concave) can be designed by the geometry/shape of the building, including the slope and length. The maximum width of the wide end is 500mm, and the minimum width of the narrow end is 200mm;

Lateral-bending panels can be custom-manufactured based on project requirements;

Specialized rib clamps can support the addition of external components without any penetration to meet different functional requirements;

For customed SRS-65 panel range parameters, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.
SRS-65 Specifications
Panel Width 300mm, 400mm, 500mm*
Rib Height 65mm
Gage 0.6 – 1.2mm
Surface Finish Smooth or Embossed
Substrates Aluminized Zinc, Galvanized Steel,
Aluminum, Stainless Steel, Titanium Zinc
*The minimum width of the wide end of the fan-shaped panel is 200mm, and the maximum width of the wide end of the fan-shaped panel is 500mm.


SRS-65
SRS-65 Customization Options

Curved SRS-65 panels are available in continuous Convex and Concave options;

Tapered and barrel-shaped SRS-65 panels (both Convex and Concave) can be designed by the geometry/shape of the building, including the slope and length. The maximum width of the wide end is 500mm, and the minimum width of the narrow end is 200mm;

Lateral-bending panels can be custom-manufactured based on project requirements;

Specialized rib clamps can support the addition of external components without any penetration to meet different functional requirements;

For customed SRS-65 panel range parameters, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.
SRS-65 Specifications
Panel Width 300mm, 400mm, 500mm*
Rib Height 65mm
Gage 0.6 – 1.2mm
Surface Finish Smooth or Embossed
Substrates Aluminized Zinc, Galvanized Steel,
Aluminum, Stainless Steel, Titanium Zinc
*The minimum width of the wide end of the fan-shaped panel is 200mm, and the maximum width of the wide end of the fan-shaped panel is 500mm.


For images of some of our SRS-65 Roof projects, please click here. You can also read more about our award-winning aesthetics, superior service, and our passion for top performance.
