DSR-U: Adaptable Fixed Panel System
Our DSR-U panel is distinctive as it features an innovative installation method with an aluminum snap-on connector that is fixed to the purlin, allowing the panel to slide relative to the connector, eliminating the internal stress caused by thermal expansion and contraction. These composite panels consist of two layers of metal permanently hot-pressed onto a fire-resistant mineral wool core, and they are sealed internally, eliminating the possibility of water stains and dirt collection where panels meet. Panels can be installed horizontally or vertically and can be customized to meet different length, width, thickness, and joint requirements. Our DSR-U panels are primarily used in exterior wall applications for commercial and public buildings as well as industrial manufacturing plants.

Technical advantages:

Our innovative "U hook" panels feature a non-perforated adherence method that ensures the wall system's free thermal displacement;

The mineral wool capacity for this panel ranges from 50mm to 200mm and can also be customized to support different thermal requirements for a project;

Concealed fastening clips and screws create a smooth appearance;

Panels are entirely internally sealed, preventing the unsightly dirt and water stains at the panel seams commonly found on lesser quality competitive panels that are sealed externally with silica gel;

Because our panels are produced using a hot-pressing technique, our panel surfaces have a high degree of flatness without the waviness and track indentation found on panels fabricated on continuous manufacturing lines;

Our adhesive application and static hot-pressing processes ensure consistent, strong bonding.


For customization options and specifications, please click on the rendering below:

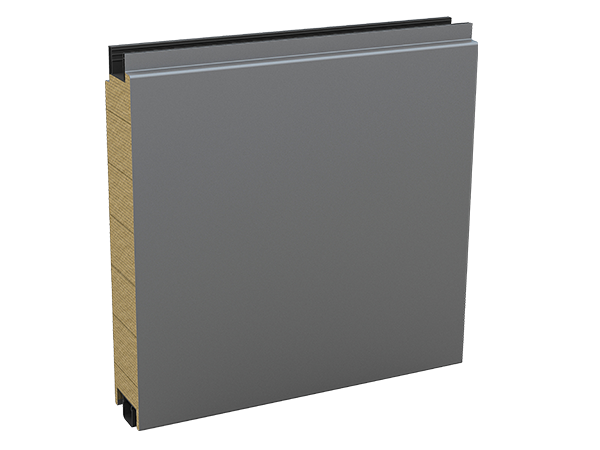

DSR-U
DSR-U Customization Options
Bespoke Dimensions: DSR-U panels can be customized in different lengths, widths, and thicknesses as required for a project; Coatings: Our coating options include standard and specialty formulas for superior weather resistance, corrosion resistance, self-cleaning, anti-static, and more; Colors: Beyond our vast standard color palette (including the RAL® and CBCC® color systems), we offer micas, metallics, and color-shifting options in a range of gloss levels to boost your projects from ordinary to extraordinary. For more information about our Colors and Coatings, please click here.
DSR-U Specifications
Panel Width 300mm – 1400mm*
Panel Thickness 50mm – 200mm
Reveal Width 2mm – 25mm
Surface Finish Smooth, Embossed,
Striated
Outer Metal Layer Thickness 0.6 – 1.0mm
Inner Metal Layer Thickness 0.5 – 1.0mm
Mineral Wool Weight Capacity Standard 140KG/m3**
Substrates Stainless Steel, Titanium Zinc Plate, Color-Coated Steel Plate, Aluminum, and more.

*Other non-standard panel widths are available. For details, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

DSR-U
DSR-U Customization Options
Bespoke Dimensions: DSR-U panels can be customized in different lengths, widths, and thicknesses as required for a project; Coatings: Our coating options include standard and specialty formulas for superior weather resistance, corrosion resistance, self-cleaning, anti-static, and more; Colors: Beyond our vast standard color palette (including the RAL® and CBCC® color systems), we offer micas, metallics, and color-shifting options in a range of gloss levels to boost your projects from ordinary to extraordinary. For more information about our Colors and Coatings, please click here.
DSR-U Specifications
Panel Width 300mm – 1400mm*
Panel Thickness 50mm – 200mm
Reveal Width 2mm – 25mm
Surface Finish Smooth, Embossed,
Striated
Outer Metal Layer Thickness 0.6 – 1.0mm
Inner Metal Layer Thickness 0.5 – 1.0mm
Mineral Wool Weight Capacity Standard 140KG/m3**
Substrates Stainless Steel, Titanium Zinc Plate, Color-Coated Steel Plate, Aluminum, and more.

*Other non-standard panel widths are available. For details, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

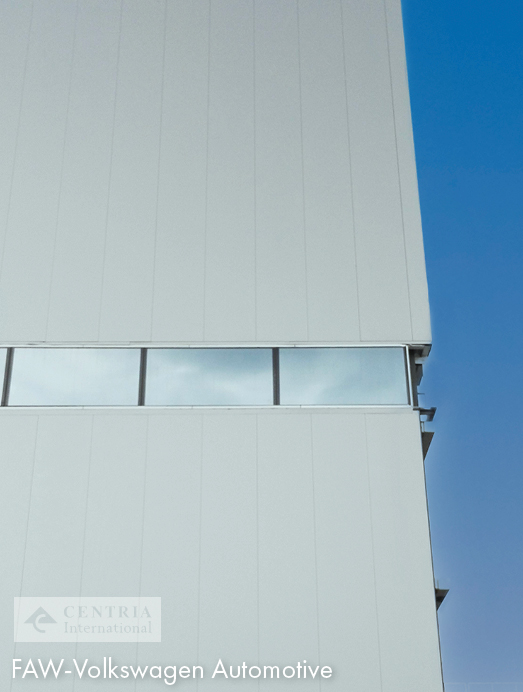

For images of some of our DSR-U projects, please click here. You can also read more about our award-winning aesthetics, superior service, and our passion for top performance.
