Home / Insulated Metal Panels / DSR-H: Industrial Panel System
DSR-H: Industrial Panel System
Purlin-free wall systems with large spans are made possible by our innovative DSR-H panels. The double-tongue-and-groove joint of the DSR-H increases the overall strength of the panels, allowing for extended, high-strength wall systems that reduce steel consumption and feature a flawless facade finish. These panels are also ideal for projects with specialty fire requirements as they can achieve fire ratings of one, two, three, and four hours based on the insulation thickness. These panels are suitable for exterior walls, interior partitions, and ceilings in commercial and public buildings and industrial facilities. The composite panels consist of two layers of metal permanently hot-pressed onto a fire-resistant mineral wool core, and they feature a double-tongue-and-groove side joint that allows for both horizontal and vertical installation.

Technical advantages:

•Our innovative "H hook" joint produces high-strength panels that make purlin-free, extended-length wall systems possible, reducing steel usage and creating a clean finish; •Continuous mineral wool at panel joints provides optimal insulation and the DSR-H design allows the panels to achieve qualified fire ratings for walls; •Panels can be installed horizontally or vertically; •Because our panels are produced using a hot-pressing technique, our panel surfaces have a high degree of flatness without the waviness and track indentation found on panels fabricated on continuous manufacturing lines; •Our adhesive application and static hot-pressing processes ensure consistent, strong bonding.
For customization options and specifications, please click on the rendering below:

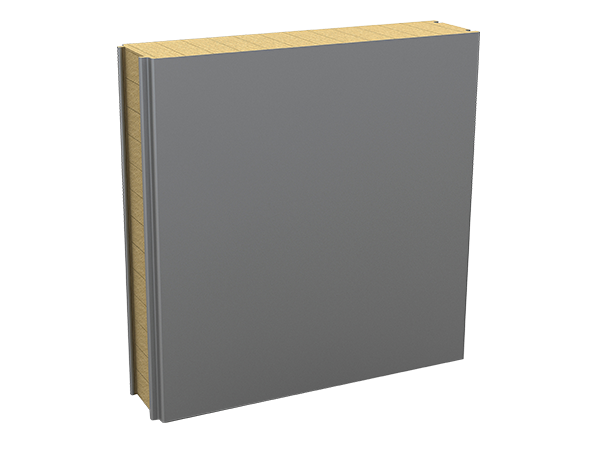

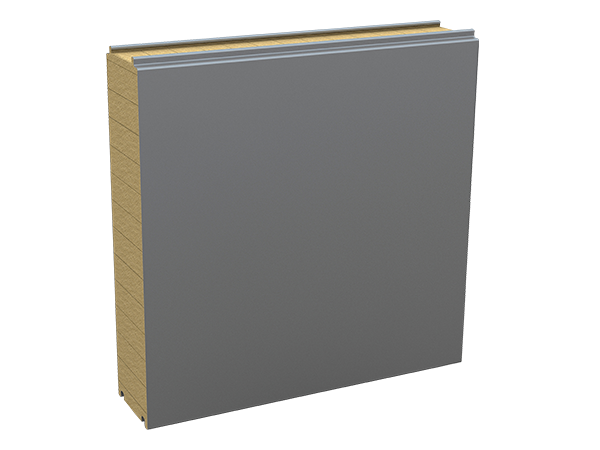

Horizontal Profile Vertical Profile
DSR-H
DSR-H Customization Options
•Bespoke Dimensions: DSR-H panels can be customized in different lengths and thicknesses as required for a project; •Coatings: Our coating options include standard and specialty formulas for superior weather resistance, corrosion resistance, self-cleaning, anti-static, and more; •Colors: Beyond our vast standard color palette (including the RAL® and CBCC® color systems), we offer micas, metallics, and color-shifting options in a range of gloss levels to boost your projects from ordinary to extraordinary. For more information about our Colors and Coatings, please click here.
DSR-H Specifications
Panel Width 300mm – 1200mm*
Panel Thickness 50mm – 200mm
Reveal Width 2mm
Surface Finish Smooth, Embossed, Striated
Outer Metal Layer
Thickness 		0.6 – 1.0mm
Inner Metal Layer
Thickness 		0.5 – 1.0mm
Mineral Wool
Weight Capacity 		Standard 140KG/m3
Substrates Stainless Steel, Titanium Zinc Plate, Color-Coated Steel Plate, Aluminum, and more.

*Other non-standard panel widths are available. For details, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

DSR-H
DSR-H Customization Options
•Bespoke Dimensions: DSR-H panels can be customized in different lengths and thicknesses as required for a project; •Coatings: Our coating options include standard and specialty formulas for superior weather resistance, corrosion resistance, self-cleaning, anti-static, and more; •Colors: Beyond our vast standard color palette (including the RAL® and CBCC® color systems), we offer micas, metallics, and color-shifting options in a range of gloss levels to boost your projects from ordinary to extraordinary. For more information about our Colors and Coatings, please click here.
DSR-H Specifications
Panel Width 300mm – 1200mm*
Panel Thickness 50mm – 200mm
Reveal Width 2mm
Surface Finish Smooth, Embossed, Striated
Outer Metal Layer
Thickness 		0.6 – 1.0mm
Inner Metal Layer
Thickness 		0.5 – 1.0mm
Mineral Wool
Weight Capacity 		Standard 140KG/m3
Substrates Stainless Steel, Titanium Zinc Plate, Color-Coated Steel Plate, Aluminum, and more.

*Other non-standard panel widths are available. For details, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.

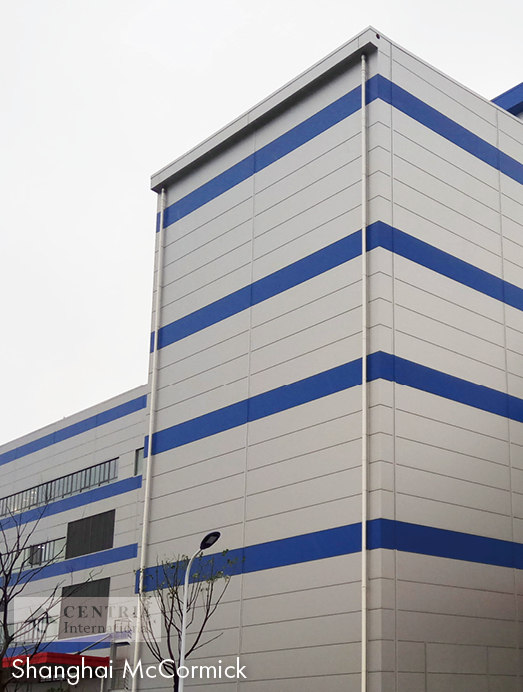

For images of some of our DSR-H projects, please click here. You can also read more about our award-winning aesthetics, superior service, and our passion for top performance.
