Home / Single-Skin Metal Panels / Architectural Series (CS): Premium Proprietary Asymmetric Profiles
Architectural Series (CS): Premium Proprietary Asymmetric Profiles
Our CS-Series Single-Skin Metal Panels make inspiring, custom aesthetics possible with a combination of concealed fasteners and a unique, interlocking side joint that is interchangeable. The joint is designed to resist the elements, and the stand-off clips provide a ventilation cavity and drain plane behind the panel allowing for thermal and seismic movements. The panels can be installed horizontally, vertically, and at an angle with a smooth, continuous appearance, augmenting the panel’s aesthetic versatility. All CS-Series panels may be used as a single skin or in combination with an interior liner panel and subgirt to form a field-insulated wall or soffit system. Featuring a wide range of profiles, CS panels work beautifully with both insulated and uninsulated walls.

Technical advantages:

•Common-lock joint allows for multiple-profile integration with other CS panels for a customized appearance; •The asymmetrical crest design and clean, unbroken appearance create sophisticated visual effects; •Our proprietary seamless corner design and manufacturing technology provide a flawless finish without unsightly fasteners. Additionally, the corners are made of the same material as the adjacent panels for a perfect match; •All-weather installation capability shortens construction time and permits fast-track scheduling; •Excellent for both new construction and retrofit projects; •Panels are available with a wide range of embossed or smooth finishes; •May be insulated to meet many levels of thermal protection; •A cost-effective option for many projects.
For customization options and specifications, please click on the renderings below:
Horizontal Profile Vertical Profile

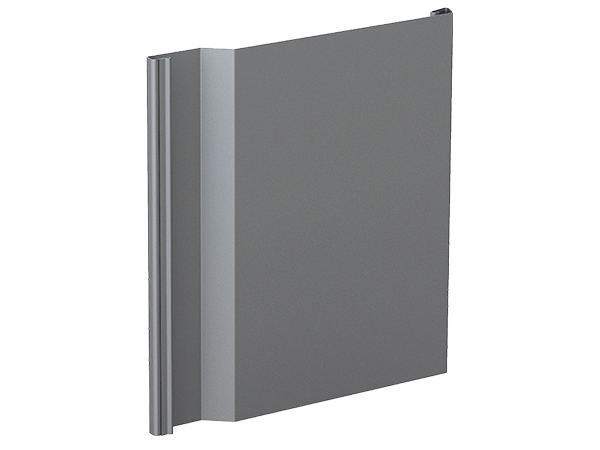

CS-200
CS-200 Product Description and Customization
•CS-200 interchangeable single-skin metal panels are 305mm wide and 22mm deep; •These profiled panels feature one asymmetrical rib; •May be used with insulation and a liner panel to meet many levels of thermal protection; •For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.
CS-200 Specifications
Panel Width 305mm
Rib Height 22mm
Base Thickness 0.76mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
CS-200
CS-200 Product Description and Customization
•CS-200 interchangeable single-skin metal panels are 305mm wide and 22mm deep; •These profiled panels feature one asymmetrical rib; •May be used with insulation and a liner panel to meet many levels of thermal protection; •For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.
CS-200 Specifications
Panel Width 305mm
Rib Height 22mm
Base Thickness 0.76mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile

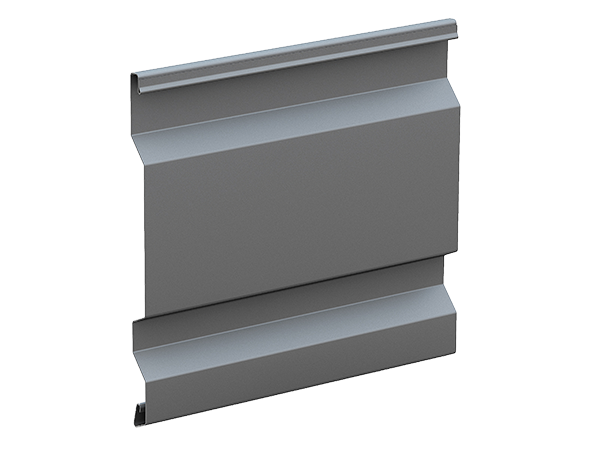

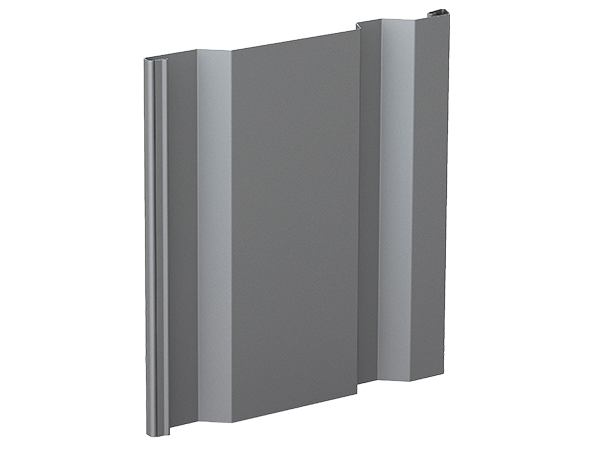

CS-210
CS-210 Product Description and Customization
•CS-210 interchangeable single-skin metal panels are 305mm wide and 22mm deep; •These profiled panels feature two asymmetrical ribs; •May be used with insulation and a liner panel to meet many levels of thermal protection; •For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.
CS-210 Specifications
Panel Width 305mm
Rib Height 22mm
Base Thickness 0.6mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
CS-210
CS-210 Product Description and Customization
•CS-210 interchangeable single-skin metal panels are 305mm wide and 22mm deep; •These profiled panels feature two asymmetrical ribs; •May be used with insulation and a liner panel to meet many levels of thermal protection; •For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.
CS-210 Specifications
Panel Width 305mm
Rib Height 22mm
Base Thickness 0.6mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile

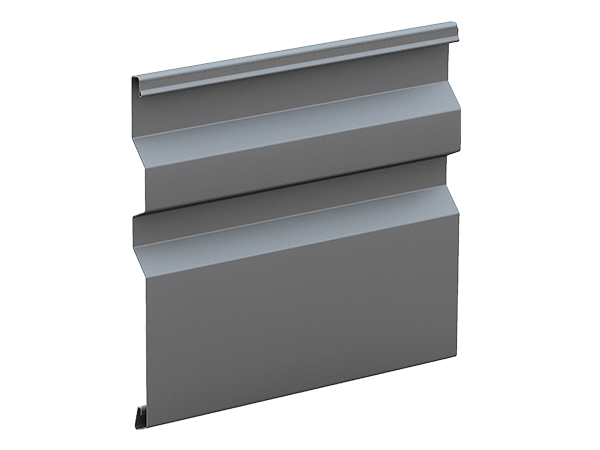

CS-220
CS-220 Product Description and Customization
•CS-220 interchangeable single-skin metal panels are 305mm wide and 22mm deep; •These profiled panels feature two asymmetrical ribs; •May be used with insulation and a liner panel to meet many levels of thermal protection; •For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.
CS-220 Specifications
Panel Width 305mm
Rib Height 22mm
Base Thickness 0.6mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
CS-220
CS-220 Product Description and Customization
•CS-220 interchangeable single-skin metal panels are 305mm wide and 22mm deep; •These profiled panels feature two asymmetrical ribs; •May be used with insulation and a liner panel to meet many levels of thermal protection; •For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.
CS-220 Specifications
Panel Width 305mm
Rib Height 22mm
Base Thickness 0.6mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile

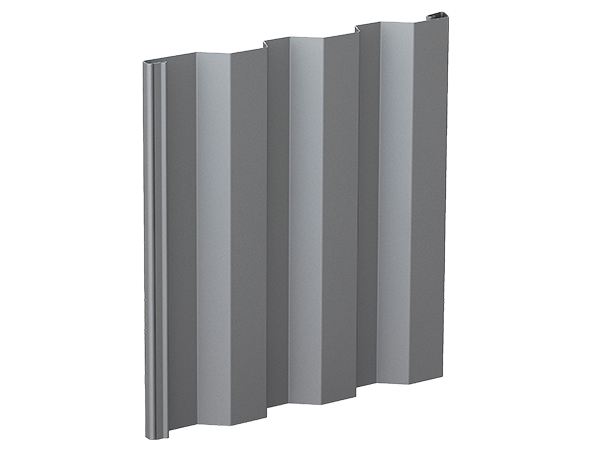

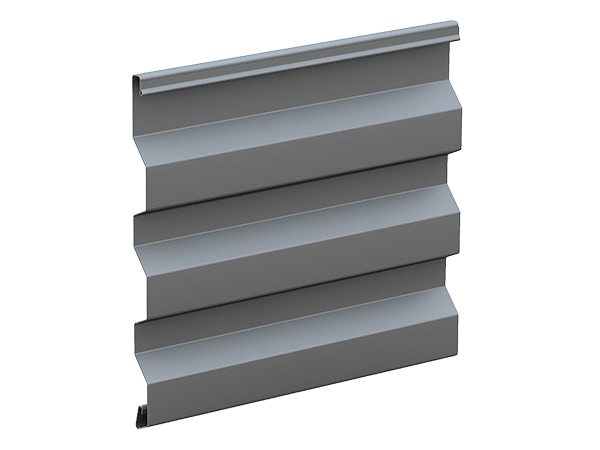

CS-260
CS-260 Product Description and Customization
•CS-260 interchangeable single-skin metal panels are 305mm wide and 22mm deep; •These profiled panels feature three asymmetrical ribs; •May be used with insulation and a liner panel to meet many levels of thermal protection; •For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.
CS-260 Specifications
Panel Width 305mm
Rib Height 22mm
Base Thickness 0.6mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
CS-260
CS-260 Product Description and Customization
•CS-260 interchangeable single-skin metal panels are 305mm wide and 22mm deep; •These profiled panels feature three asymmetrical ribs; •May be used with insulation and a liner panel to meet many levels of thermal protection; •For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.
CS-260 Specifications
Panel Width 305mm
Rib Height 22mm
Base Thickness 0.6mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile

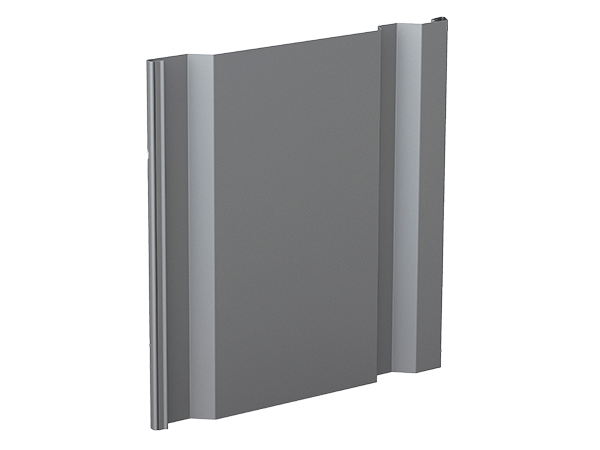

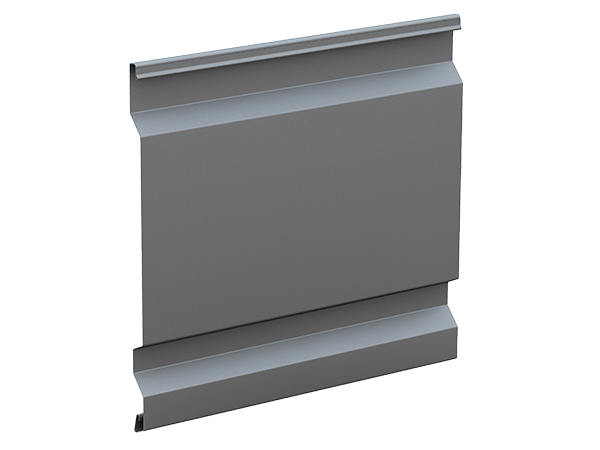

CS-610
CS-610 Product Description and Customization
•CS-610 interchangeable single-skin metal panels are 406mm wide and 22mm deep; •These profiled panels feature two asymmetrical ribs; •May be used with insulation and a liner panel to meet many levels of thermal protection; •For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.
CS-610 Specifications
Panel Width 406mm
Rib Height 22mm
Base Thickness 0.76mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
CS-610
CS-610 Product Description and Customization
•CS-610 interchangeable single-skin metal panels are 406mm wide and 22mm deep; •These profiled panels feature two asymmetrical ribs; •May be used with insulation and a liner panel to meet many levels of thermal protection; •For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.
CS-610 Specifications
Panel Width 406mm
Rib Height 22mm
Base Thickness 0.76mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile

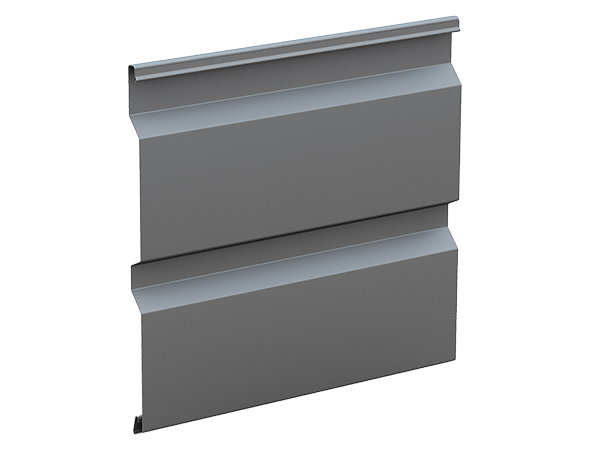

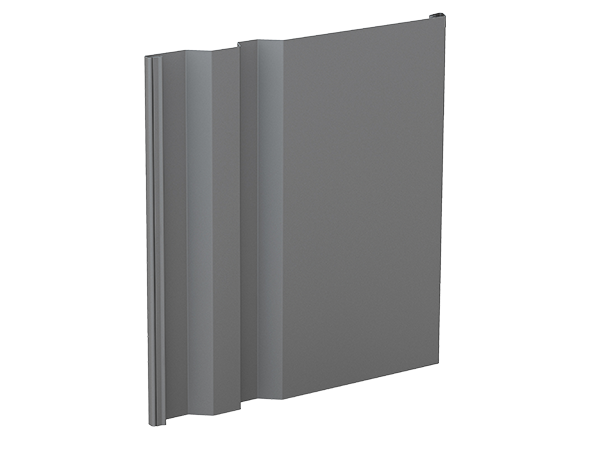

CS-620
CS-620 Product Description and Customization
•CS-620 interchangeable single-skin metal panels are 406mm wide and 22mm deep; •These profiled panels feature two asymmetrical ribs; •May be used with insulation and a liner panel to meet many levels of thermal protection; •For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.
CS-620 Specifications
Panel Width 406mm
Rib Height 22mm
Base Thickness 0.6mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
CS-620
CS-620 Product Description and Customization
•CS-620 interchangeable single-skin metal panels are 406mm wide and 22mm deep; •These profiled panels feature two asymmetrical ribs; •May be used with insulation and a liner panel to meet many levels of thermal protection; •For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.
CS-620 Specifications
Panel Width 406mm
Rib Height 22mm
Base Thickness 0.6mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile

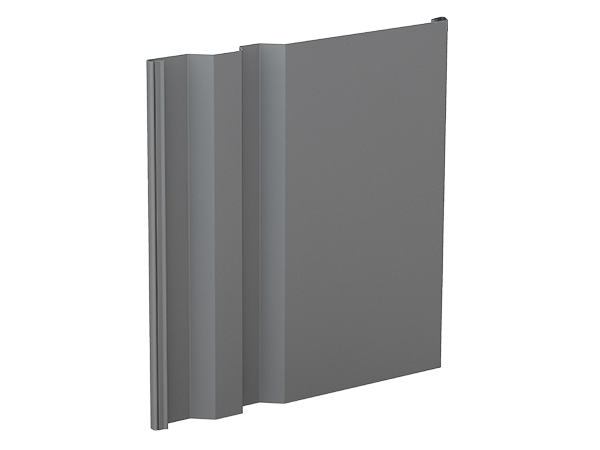

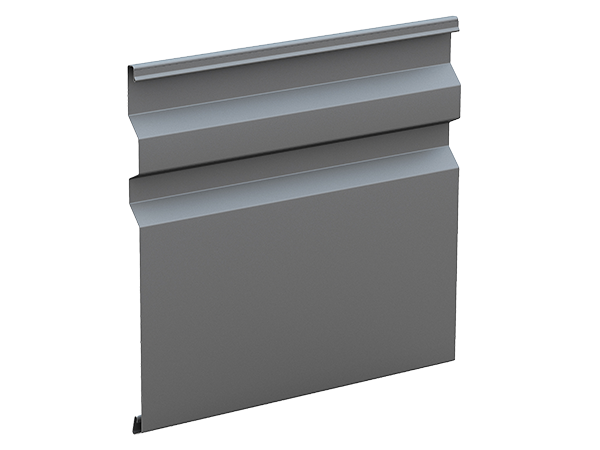

CS-630
CS-630 Product Description and Customization
•CS-630 interchangeable single-skin metal panels are 406mm wide and 22mm deep; •These profiled panels feature two asymmetrical ribs; •May be used with insulation and a liner panel to meet many levels of thermal protection; •For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.
CS-630 Specifications
Panel Length 1.52m – Max. 9.14m
Panel Width 406mm
Base Thickness 0.76mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
CS-630
CS-630 Product Description and Customization
•CS-630 interchangeable single-skin metal panels are 406mm wide and 22mm deep; •These profiled panels feature two asymmetrical ribs; •May be used with insulation and a liner panel to meet many levels of thermal protection; •For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.
CS-630 Specifications
Panel Length 1.52m – Max. 9.14m
Panel Width 406mm
Base Thickness 0.76mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile

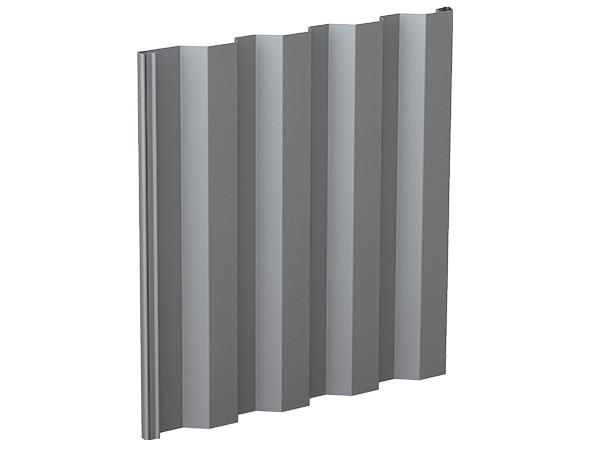

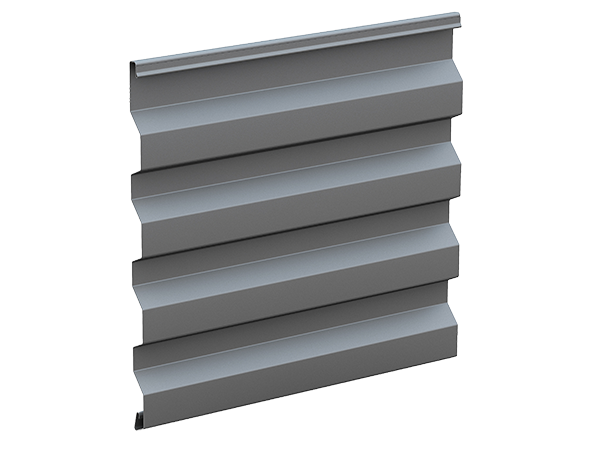

CS-660
CS-660 Product Description and Customization
•CS-660 interchangeable single-skin metal panels are 406mm wide and 22mm deep; •These profiled panels feature four asymmetrical ribs; •May be used with insulation and a liner panel to meet many levels of thermal protection; •For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.
CS-660 Specifications
Panel Length 1.52m – Max. 9.14m
Panel Width 406mm
Base Thickness 0.6mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
CS-660
CS-660 Product Description and Customization
•CS-660 interchangeable single-skin metal panels are 406mm wide and 22mm deep; •These profiled panels feature four asymmetrical ribs; •May be used with insulation and a liner panel to meet many levels of thermal protection; •For more information, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.
CS-660 Specifications
Panel Length 1.52m – Max. 9.14m
Panel Width 406mm
Base Thickness 0.6mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details

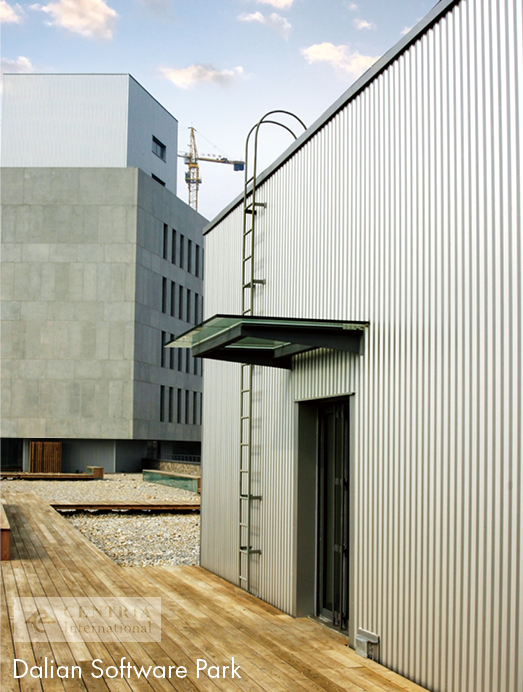

For images of some of our CS-Series projects, please click here. You can also read more about our award-winning aesthetics, superior service, and our passion for top performance.
