Home / Roof Systems / VersaShield: High-Performance Insulated Metal Roof System
VersaShield: High-Performance Insulated Metal Roof System
VersaShield Insulated Roof panels offer superior fire protection with a finished interior liner, factory-applied air and vapor seal, mineral wool core, a profiled rib, and a finished exterior weathering surface all incorporated into a single unit. Ideal for data centers, unmanned drilling facilities, and other buildings requiring the ultimate in fire safeguarding, VersaShield also delivers high thermal values for energy-efficient performance.

Technical advantages:

•The ribs create an impactful design element when used as a roofing solution; •Features a non-combustible mineral wool core that provides superior fire resistance; •Thermal break between the face and liner saves energy; •Increased span capability reduces support steel requirements lowering material costs; •Single-component unit design lowers installation costs; •Our adhesive application and static hot-pressing processes ensure a consistent, strong bond;

•Can help meet LEED® and Green Building requirements;

•VersaShield can also be installed as an insulated Wall panel system.


For customization options and specifications, please click on the rendering below:
Horizontal Profile Vertical Profile

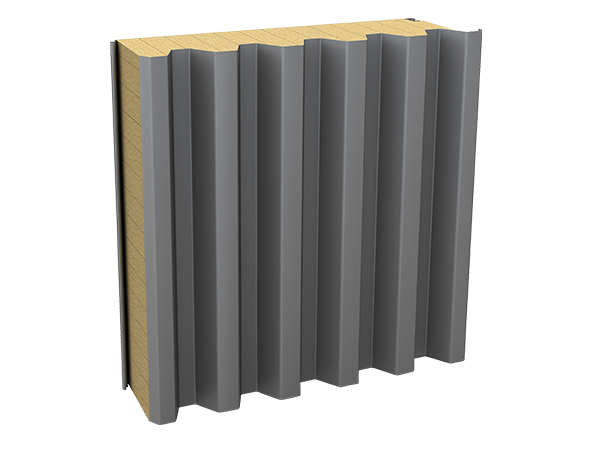

VersaShield
VersaShield Customization Options
•Based on the mineral wool core, panels are available in thicknesses ranging from 100mm – 200mm for various thermal performance requirements; •The panels are available in standard lengths from 2m – 11m.
VersaShield Specifications
Panel Width 914mm*
Panel Thickness 50mm – 200mm
Rib Height 38mm
Surface Finish Smooth, Embossed, Striated
Outer Metal Layer Thickness 0.6 – 1.0mm
Inner Metal Layer Thickness 0.5 – 1.0mm
Mineral Wool Weight Capacity Standard 140KG/m3**
Substrates Stainless Steel, Titanium Zinc Plate, Color-Coated Steel Plate, Aluminum, and more.
*Other non-standard panel widths are available. **Mineral Wool weight capacity can be customized according to project requirements. For details, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.
VersaShield
VersaShield Customization Options
•Based on the mineral wool core, panels are available in thicknesses ranging from 100mm – 200mm for various thermal performance requirements; •The panels are available in standard lengths from 2m – 11m.
VersaShield Specifications
Panel Width 914mm*
Panel Thickness 50mm – 200mm
Rib Height 38mm
Surface Finish Smooth, Embossed, Striated
Outer Metal Layer Thickness 0.6 – 1.0mm
Inner Metal Layer Thickness 0.5 – 1.0mm
Mineral Wool Weight Capacity Standard 140KG/m3**
Substrates Stainless Steel, Titanium Zinc Plate, Color-Coated Steel Plate, Aluminum, and more.
*Other non-standard panel widths are available. **Mineral Wool weight capacity can be customized according to project requirements. For details, please don't hesitate to contact your CENTRIA International Sales Manager or kindly complete our Enquiry Form, and a representative will be in touch shortly.
For images of some of our Roof projects, please click here. You can also read more about our award-winning aesthetics, superior service, and our passion for top performance.
