Home / Single-Skin Metal Panels / Liner Series (L2): Interior High-Performance Panels
Liner Series (L2): Interior High-Performance Panels

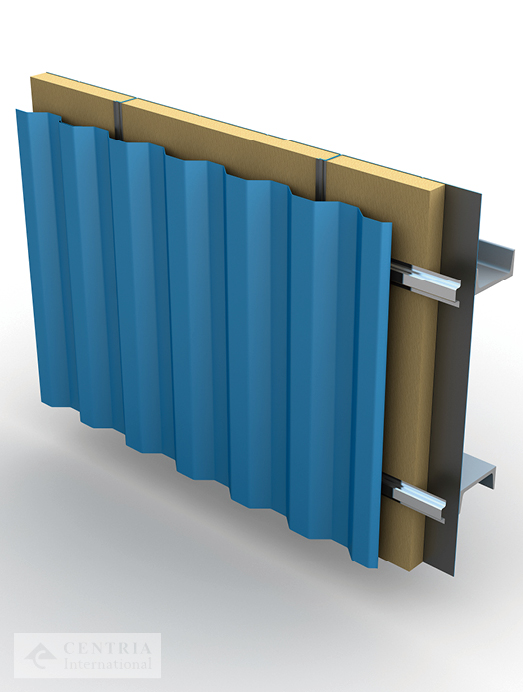

Our Liner Series panels are renowned for conserving valuable energy by maximizing heat loss or gain and can be perforated to boost acoustical performance. They also offer extraordinary flexibility, as they can be used as a liner for exterior cavity walls, exterior stud wall systems, or as a partition wall. For a complete field-assembled wall system, they can be incorporated with subgirts, varying thicknesses of noncombustible insulation, and exterior panels to help meet different levels of energy-saving requirements. In addition to their outstanding performance, they also add a striking look to building interiors with their profile and flush finish.

Technical advantages:

•Our Liner panels feature excellent overall U-values and – when combined to create a field-assembled wall system – can offer high R-values depending on the thickness of the insulation; •Liner panels can be used as an interior wall for a smooth, beautiful finish or to support enhanced acoustics; •The panels add structural capacity and additional water and air infiltration performance by creating an air and vapor barrier for the building enclosure; •The panels are virtually maintenance-free.
For customization options and specifications, please click on the renderings below:
Horizontal Profile Vertical Profile

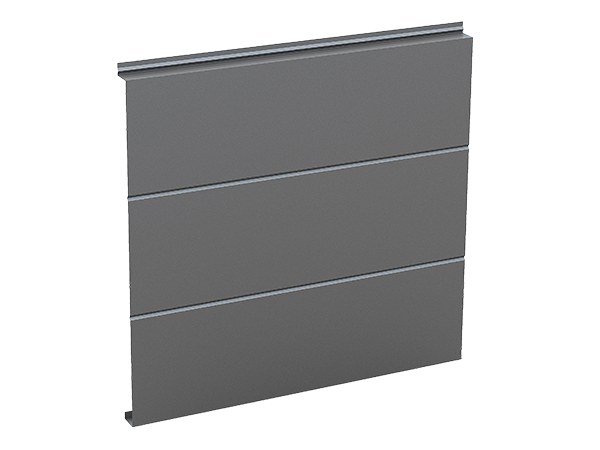

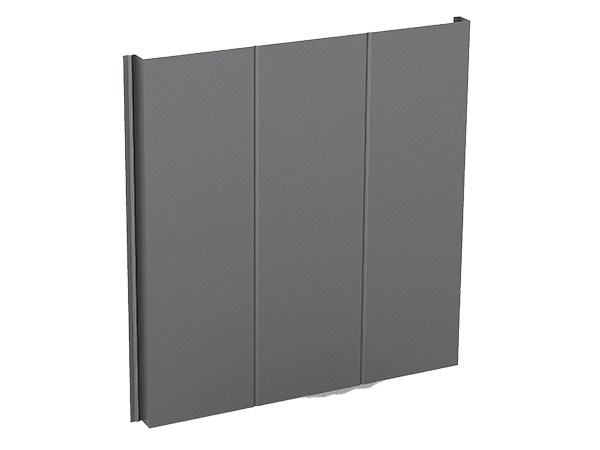

L2
L2 Product Description
•The L2 is a cost-effective interior Liner Panel that can be used in conjunction with any CENTRIA International exterior panel; •L2 is ideal for normal wind loading conditions and air and water infiltration requirements; •For interiors, the panel presents a flush appearance.
L2 Specifications
Panel Width 610mm
Rib Height 35mm
Gage 0.6mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
L2
L2 Product Description
•The L2 is a cost-effective interior Liner Panel that can be used in conjunction with any CENTRIA International exterior panel; •L2 is ideal for normal wind loading conditions and air and water infiltration requirements; •For interiors, the panel presents a flush appearance.
L2 Specifications
Panel Width 610mm
Rib Height 35mm
Gage 0.6mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile

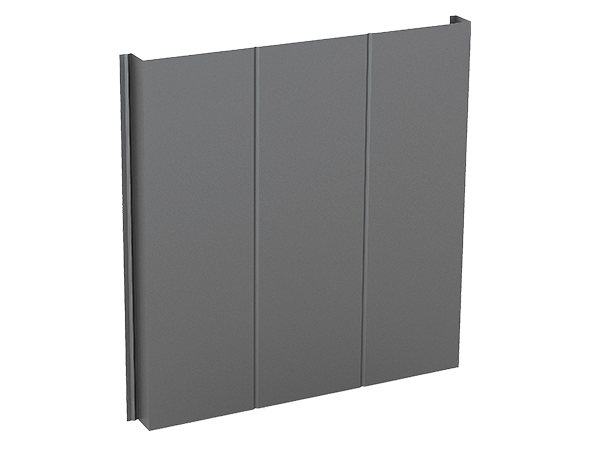

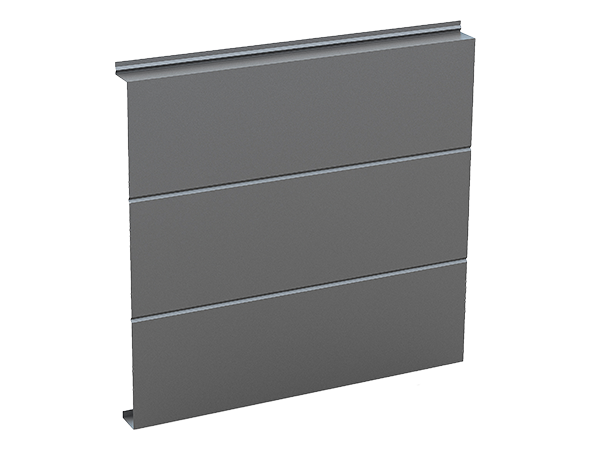

L2-2
L2-2 Product Description

•Similar to L2, the L2-2 is a cost-effective interior Liner Panel that can be used in conjunction with any CENTRIA International exterior panel;

•With a slightly increased thickness (50mm), L2-2 is ideal for normal wind loading conditions and air and water infiltration requirements;

•For interiors, the L2-2 Liner Panel presents a flush appearance.

L2-2 Specifications
Panel Width 610mm
Rib Height 35mm
Gage 0.6mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
L2-2
L2-2 Product Description

•Similar to L2, the L2-2 is a cost-effective interior Liner Panel that can be used in conjunction with any CENTRIA International exterior panel;

•With a slightly increased thickness (50mm), L2-2 is ideal for normal wind loading conditions and air and water infiltration requirements;

•For interiors, the L2-2 Liner Panel presents a flush appearance.

L2-2 Specifications
Panel Width 610mm
Rib Height 35mm
Gage 0.6mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile

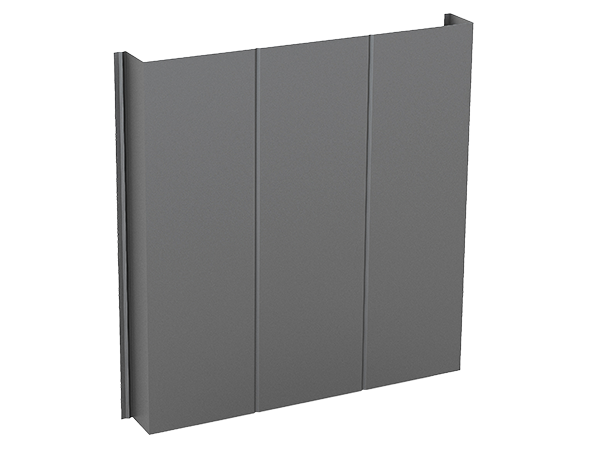

L2-3
L2-3 Product Description

•The L2-3 Liner Panel features a 76mm cavity (the deepest of our Liner Panels) which allows for additional insulation, improving the U-value of the wall system;

•The L2-3 provides a flush interior appearance.

L2-3 Specifications
Panel Width 610mm
Rib Height 35mm
Gage 0.6mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
L2-3
L2-3 Product Description

•The L2-3 Liner Panel features a 76mm cavity (the deepest of our Liner Panels) which allows for additional insulation, improving the U-value of the wall system;

•The L2-3 provides a flush interior appearance.

L2-3 Specifications
Panel Width 610mm
Rib Height 35mm
Gage 0.6mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile

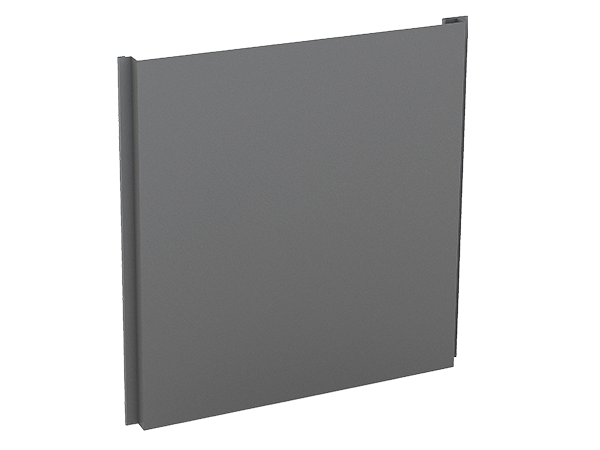

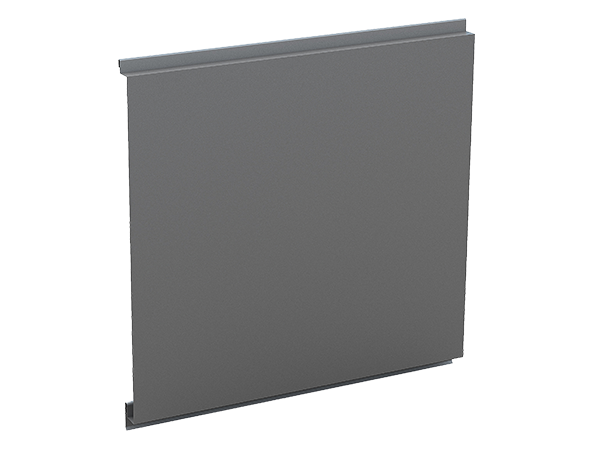

L2-21
L2-21 Product Description
•The L-21 is a high-performance Liner Panel designed to be used as the liner side of an exterior wall assembly, in combination with a subgirt, insulation, and exterior panel.
L2-21 Specifications
Panel Width 610mm
Rib Height 38mm
Gage 0.6mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
L2-21
L2-21 Product Description
•The L-21 is a high-performance Liner Panel designed to be used as the liner side of an exterior wall assembly, in combination with a subgirt, insulation, and exterior panel.
L2-21 Specifications
Panel Width 610mm
Rib Height 38mm
Gage 0.6mm – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
Horizontal Profile Vertical Profile

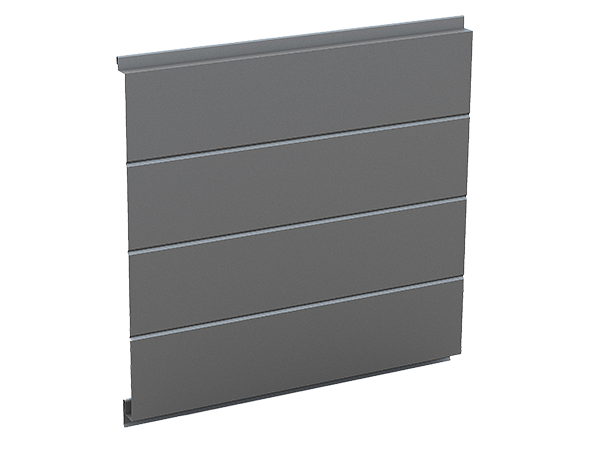

L2-21A
L2-21A Product Description

• The L-21A is a high-performance partition wall panel.

•For exteriors, it can be used as the liner side of a stud wall system, and for interiors, it can be applied over concrete or other surfaces to create a stunning appearance and reduce future maintenance.

L2-21A Specifications
Panel Width 610mm
Rib Height 38mm
Gage 0.6 – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
L2-21A
L2-21A Product Description

• The L-21A is a high-performance partition wall panel.

•For exteriors, it can be used as the liner side of a stud wall system, and for interiors, it can be applied over concrete or other surfaces to create a stunning appearance and reduce future maintenance.

L2-21A Specifications
Panel Width 610mm
Rib Height 38mm
Gage 0.6 – 1.2mm
Surface Finish Smooth or Embossed
Substrates Standard:
G90 Galvanized Steel
Optional:
Please contact us for details
For images of some of our Single-Skin Metal Panel projects, please click here. You can also read more about our award-winning aesthetics, superior service, and our passion for top performance.
